Styling a multi-state <meter> in pure CSS

In the last few years HTML and CSS have grown to a point where it’s almost possible to describe every common UI pattern. In this spirit, I recently embarked on a new experiment during my off times: styling the native <meter> element as a bar with specific colors for some of its states using only valid HTML and CSS.

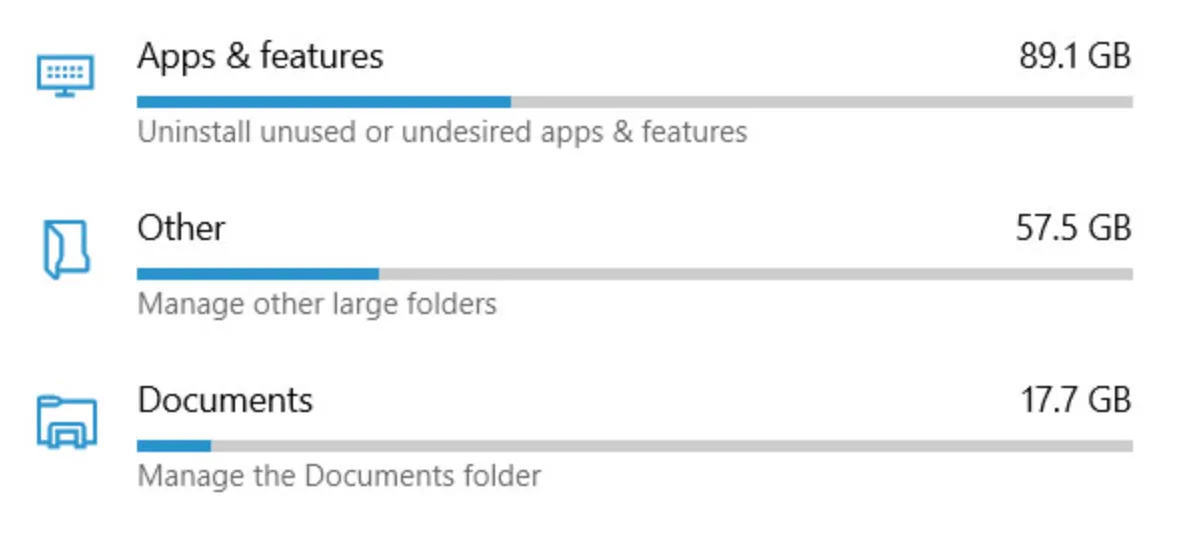

What sent me down this path was a concrete UI requirement: re-create the credits/usage bar you see in many contexts like subscription products, system usage overview, etc. It’s a bar showing how much of your quota is used, that shifts color as you approach the limit.

It’s a common enough pattern that I expected a ready-made component for it. Instead I found that most UI libraries reach for the wrong native primitive, or skip native primitives entirely.

Is it a progress bar?

By looking at some of the popular libraries, it might seem that this kind of UI element is called Progress. For example, both shadcn/ui and Bootstrap have a Progress component and both apply a role="progressbar" to it. While it might be tempting to use these components, in reality a progressbar (or the HTML native counterpart, <progress>) is the wrong element for the task:

Instead, the HTML spec is very clear on what we should use:

Implementation

From this I started experimenting with the <meter> element to see how far I could push a nice implementation of a usage meter using just HTML and CSS.

Requirements

For this experiment, my requirements are:

1. The bar should have rounded corners (both the container and the actual meter bar).
2. The bar has three states defined by color codes: default, warning (optional), and max.

TL;DR

If you’re just curious to see the finished implementation, here’s the codepen:

See the Pen Colorized meter by Marco Solazzi (@marco_solazzi) on CodePen.

HTML setup

The <meter> element already gives me all the features I need to fulfill the requirements:

<label for="meter">Meter</label>
<meter min="0" max="200" value="100" high="150" id="meter"></meter>

Think of value as the current usage, max as the maximum allowed usage, and high as the threshold at which a system would want to nudge you with a warning before you actually run out of space.

And that’s it for the HTML part. But if you are using this for something other than just plain numbers, it’s a good idea to add at least a visually hidden, human-readable description for accessibility. For a more in-depth review of this subject, please read this 2022 article about <meter> accessibility by Dana Byerly.

In my case, I used the text as a visual description of the meter value and positioned it with Anchor positioning.

<label for="meter">Disk Usage</label>
<meter
  min="0"
  max="200"
  value="100"
  high="150"
  id="meter"
  aria-describedby="description"
></meter>
<span id="description">100GB out of 200GB</span>
<style>
  /* Anchor the description at the top/right of the meter */
  meter {
    anchor-name: --meter;
  }
  #description {
    position: absolute;
    position-anchor: --meter;
    inset-block-end: calc(anchor(start) + 0.25rem);
    inset-inline-end: anchor(end);
  }
</style>

Design choices

• No gradients between states, just a hard swap with a short transition.
• Firefox and Chromium/WebKit each expose their own set of pseudo-elements for <meter>, so both sets need to be reset and re-styled independently.

Technical implementation

Now, for the CSS implementation, I used some new CSS features:

• Typed attr(): reads an HTML attribute straight into a CSS custom property as a real <number>, not a string
• if() with style() queries: sets a native conditional for choosing a value based on comparing two custom properties

Since not all browsers support if() and typed attr() at the time of writing, I added a fallback using more widely available web features:

• sign() and clamp(): used together to compute a 0/1/2 state number mapping the three states of the meter
• color-mix(), nested twice: turns that state number into an actual state color

The cleaner path

Typed attr() and if() make the code straightforward and easier to maintain, but they still have limited support at the time of writing.

Plain attr() has existed in CSS for a long time, but it only ever returned a string. Typed attr() lets you specify the expected type (and an optional fallback):

meter {
  /* Set the custom properties only if the browser supports typed attributes */
  @supports (x: attr(x type(*))) {
    --value: attr(value type(<number>), 0);
    --max: attr(max type(<number>), infinity);
    --threshold: attr(high type(<number>), var(--max));
  }

  /* ... */
}

Once —value, —max, and —threshold are numbers, we can use if() and style queries to assign the correct color for each state:

meter {
  --bar-color: if(
    style(--value = --max): var(--color-alert);
    style(--value >= --threshold): var(--color-warning);
    else: var(--color-default);
  );
}

The previous code block reads, top to bottom, like a switch statement: full value → alert, past threshold → warning, otherwise the default color.

Typed attributes fallback

In browsers without typed attr() support, custom properties won’t be set correctly, but we can assign them manually via JavaScript by reading the value of each attribute:

// check for typed `attr()` support
const hasTypedAttr = CSS.supports('x', 'attr(x type(*))');
const $meter = document.querySelector('#meter');

if (!hasTypedAttr) {
  const update = () => {
    $meter.style.setProperty('--value', $meter.value);
    $meter.style.setProperty('--max', $meter.getAttribute('max'));
    $meter.style.setProperty('--threshold', $meter.getAttribute('high'));
  };

  // watch for changes on specific attributes
  // and manually update the fallback CSS custom properties
  const observer = new MutationObserver(update);
  observer.observe($meter, {
    attributes: true,
    attributeFilter: ['value', 'max', 'high'],
  });

  // sync the fallback custom properties
  // at DOM ready
  update();
}

I am using a MutationObserver to keep the fallback CSS custom properties in sync with the attributes.

Conditionals fallback: a sprinkle of hacky arithmetic

For browsers not supporting if(), there’s no native if/else to fall back on, so the trick is to encode the three states as a single number and let math pick the color. Our new —state property ends up being 0 (default), 1 (warning), or 2 (alert):

meter {
  --state: clamp(
    0,
    calc(
      sign(var(--value) - var(--threshold) + 1) +
      sign(var(--value) - var(--max)) + 1
    ),
    2
  );
}

Once we have computed the value of —state as a plain number, color-mix() turns it into the final color (note that we need to nest two color-mix() calls since Chrome and Safari cap color-mix at two colors):

meter {
  --bar-color: color-mix(
    in srgb,
    var(--color-alert) max(0%, (var(--state) - 1) * 100%),
    color-mix(
      in srgb,
      var(--color-warning) min(100%, var(--state) * 100%),
      var(--color-default)
    )
  );
}

Let’s walk through it for each value of —state to see how each color state is computed.

When --state === 0

meter {
  --bar-color: color-mix(
    in srgb,
    var(--color-alert) max(0%, (0 - 1) * 100%), /* max(0%, -100%) -> 0% */
    color-mix(
      in srgb,
      var(--color-warning) min(100%, 0 * 100%), /* min(100%, 0%) -> 0% */
      var(--color-default) /* no percentage -> defaults to 100% */
    ) /* no percentage -> defaults to 100% */
  );
}

In the outer color-mix(), the first color’s percentage computes to 0%, so the final color will be determined only by the inner color-mix(). There, —color-warning has a computed percentage of 0%, so the final color is —color-default.

When --state === 1

meter {
  --bar-color: color-mix(
    in srgb,
    var(--color-alert) max(0%, (1 - 1) * 100%), /* max(0%, 0%) -> 0% */
    color-mix(
      in srgb,
      var(--color-warning) min(100%, 1 * 100%), /* min(100%, 100%) -> 100% */
      var(--color-default) /* no percentage -> defaults to 0% */
    ) /* no percentage -> defaults to 100% */
  );
}

In the outer color-mix(), the first color’s percentage still computes to 0%. In the inner color-mix(), —color-warning has a computed percentage of 100% and, since —color-default doesn’t have an explicit percentage, it defaults to 0%. The final color is —color-warning.

When --state === 2

meter {
  --bar-color: color-mix(
    in srgb,
    var(--color-alert) max(0%, (2 - 1) * 100%), /* max(0%, 100%) -> 100% */
    color-mix(
      in srgb,
      var(--color-warning) min(100%, 2 * 100%), /* min(100%, 200%) -> 100% */
      var(--color-default) /* no percentage -> defaults to 0% */
    ) /* no percentage -> defaults to 0% */
  );
}

In the outer color-mix(), the first color’s percentage now computes to 100%. In this case, the inner color-mix() value is irrelevant, since its percentage defaults to 0%. The final color is —color-alert.

Overall, I think it’s very clear that this implementation is harder to read and maintain than the one using if().

Applying the computed styles

Firefox and Chromium/WebKit expose <meter>’s internals through unrelated pseudo-elements, so both need resetting before the custom —bar-color can be applied:

meter {
  /* Firefox Reset */
  &::-moz-meter-bar {
    appearance: none;
    background: none;
  }

  /* WebKit / Blink Reset */
  &::-webkit-meter-bar,
  &::-webkit-meter-inner-element,
  &::-webkit-meter-optimum-value,
  &::-webkit-meter-suboptimum-value,
  &::-webkit-meter-even-less-good-value {
    appearance: none;
    background: none;
  }

  /* Firefox styles */
  &::-moz-meter-bar {
    background: var(--bar-color);
    border-radius: 99em;
    transition: var(--transition);
  }

  /* WebKit / Blink style */
  &::-webkit-meter-bar {
    block-size: var(--bar-height);
  }

  &::-webkit-meter-suboptimum-value,
  &::-webkit-meter-optimum-value {
    background: var(--bar-color);
    border-radius: 99em;
    transition: var(--transition);
  }
}

Final Thoughts

This was a fun experiment. The fallback part was pretty interesting and satisfying to code, even if I’d trade it a hundred times for the simplicity of an if() statement in production code.

While the implementation works across all major browsers, remember that this was just a quick experiment and that production-level code should go through extensive tests, especially when it comes to usability and accessibility.
